EP-50
Hydraulic Crimping Tool
Light weight and slim design
Latched type head
Up to 150mm² hexagonal crimp
Latched type head
Up to 150mm² hexagonal crimp
SPECIFICATIONS
- Application:
- Crimping for Cu/Al Terminal or Lugs
- Range:
- 6 – 150mm²
- Ram stroke:
- 15 mm
- Output force:
- 50 kN
- Size:
- 370 x 130 mm
- WEIGHT:
- 2.0 kg
- ACCESSORIES:
- Carrying Case
- * Dies are sold separately
Optional accessories

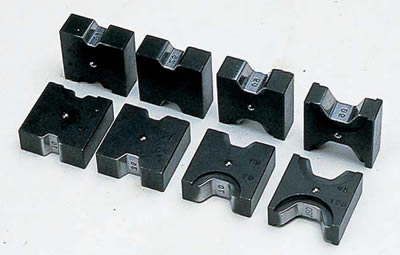

Hexagonal Dies for 5 ton Crimping Tools
BEKU type dies
Copper, Aluminum Terminals
Suitable for DIN46235
BEKU type dies
Copper, Aluminum Terminals
Suitable for DIN46235

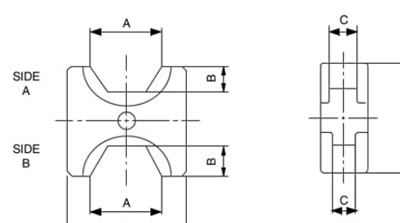

| Die No. | Side | Range | A | B | C |
| K6 & K8 | A (K6) | Cu 10 | 6.2 | 2.0 | 12.0 |
| B (K8) | Cu 16 | 8.2 | 3.0 | 12.0 | |
| K10 & K12K | A (K10) | Cu 25 Al 16 |
9.7 | 3.6 | 12.0 |
| B (K12) | Cu 35 Al 25 |
11.8 | 4.4 | 9.0 | |
| K14 & K16 | A (K14) | Cu 50 Al 35 |
13.8 | 5.3 | 8.0 |
| B (K16) | Cu 70 Al 50 |
15.8 | 6.0 | 8.0 | |
| K18 & K20 | A (K18) | Cu 95 Al 70 |
18.0 | 7.0 | 7.0 |
| B (K20) | Cu 120 Al 95 |
19.8 | 7.6 | 6.0 | |
| (mm²) | (mm) | (mm) | (mm) |
