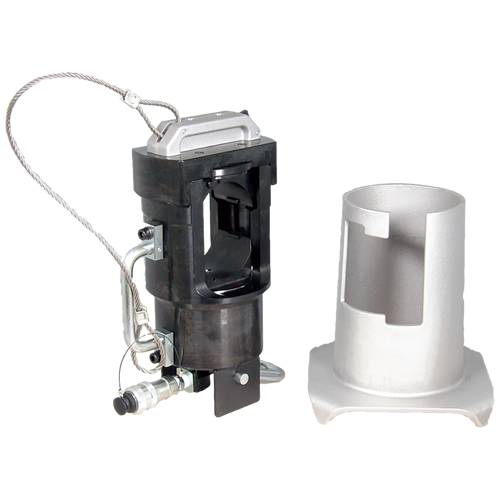

EP-60S2
Remote Hydraulic Crimping Head
For transmission and substation cable connection
Accepts existing 60 ton U-type dies.
Detachable ground stand
Use with single acting Hydraulic Pump (68.5Mpa rated pressure)
Accepts existing 60 ton U-type dies.
Detachable ground stand
Use with single acting Hydraulic Pump (68.5Mpa rated pressure)
SPECIFICATIONS
- Application:
- Crimping for Cu/Al/St Terminals, Lugs and Splices
- Range:
- Max. 60mm dia. Connector
- Ram stroke:
- 38.5mm
- Output force:
- 540kN (60 US ton) with 68.5Mpa output Hydraulic Pump
- Size:
- 146 x 450mm
- WEIGHT:
- 20.8 kg
- ACCESSORIES:
- Ground Stand, Steel Carrying Case
- Recommended Hydraulic Pump:
- * Dies are sold separately
Optional accessories
ALCOA type Hexagonal Dies for 60 ton Crimping Tools

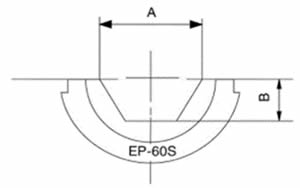

| Die No. | A | B | C |
| 10SH | 15.9 | 6.9 | 32.0 |
| 12SH | 19.3 | 8.4 | 23.9 |
| 14SH | 22.2 | 9.5 | 25.4 |
| 16SH | 25.4 | 10.9 | 16.8 |
| 18SH | 28.6 | 12.3 | 15.2 |
| 20SH | 31.7 | 13.4 | 19.0 |
| 75SH | 10.7 | 4.6 | 35.1 |
| 76SH | 12.7 | 5.5 | 28.4 |
| 20AH | 31.8 | 13.5 | 59.7 |
| 24AH | 38.1 | 16.3 | 49.5 |
| 27AH | 42.8 | 18.2 | 43.2 |
| 30AH | 47.6 | 20.2 | 57.0 |
| 34AH | 54.0 | 23.0 | 46.2 |
| 36AH | 57.2 | 24.2 | 44.5 |
| 74AH | 20.8 | 8.7 | 62.0 |
| 75AH | 25.4 | 10.6 | 62.0 |
| 76AH | 30.2 | 12.6 | 61.2 |
| (mm) | (mm) | (mm) |
