The 6th Generation Battery Operated Tools (Others)
REC-6200MX
REC-6200MX

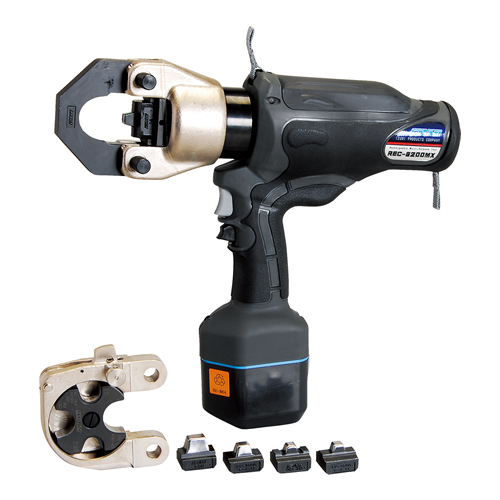

Battery Operated Multi-Purpose Tool
5 optional attachments
Easy changeover attachments by lock pin
LED work light
SPECIFICATIONS
Application:
Crimping, Cutting, Punching
Range:
Crimping : 8-250mm² JIS Copper lugs with basic crimp set Cutting, Punching ->
see attachments
Ram stroke:
22 mm
Output force:
127kN
SIZE:
383 x 261 x 79 mm
WEIGHT:
5.0 kg (without battery)
Battery type:
14.4V IZUMI Battery
ACCESSORIES:
Battery, Charger, Carrying Case
Optional Attachments for REC-6200MX
200AT-50YC
200AT-13WT
200AT-9PD
200AT-AP18
Application

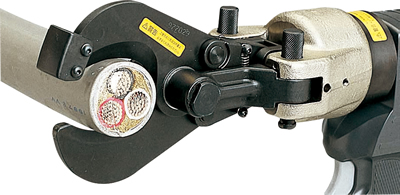

Cutting for Cu/Al Cables

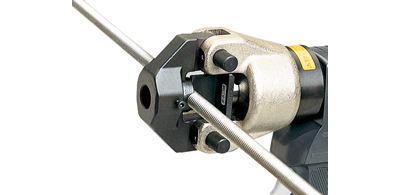

Cutting for Threaded bar

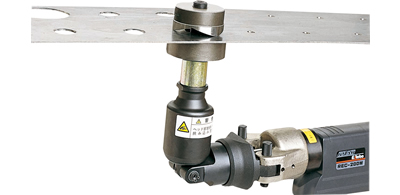

Knock out punching for metal sheet

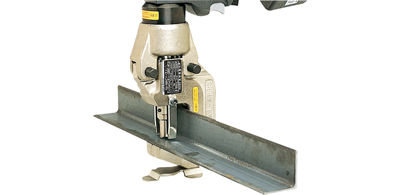

Punching for Angle steel bars
Range
Max. 50mm O.D. Cu/Al Cables
W3/8, W/1/2 Soft steel and Stainless
Up to B104 (115.5mm) dia. hole on 3.2mm thickness mild steel (1.6mm stainless steel)
Up to 17.5mm dia. hole on 6mm thickness steel
Accessories
-
W 3/8 Die
Set bolts, Collars. Punch & Die are sold separately
10.5mm, 13.5mm and 175mm dia. punch
* Not for steel materials
* W 1/2, M10, M12 Cutting Die are sold separately
* Punch & die, Set bolts Collars are the same as for
SH-10
